C Content (%) 100% carbon fiber

Place of Origin Guangdong, China

Application Hiking Poles, Salvage Poles,UAV ,Drones ,FPV ,Sports, Support for Testing Equipment etc.

Shape Custom

Dimensions Custom

Product Type Carbon Fiber

Material 100% Carbon Fiber

Surface 3k Twill/plain Glossy/matte

Feature Light Weight High Strength

Color Customized Colors

Thickness Customized Thickness

Working Temperature 0-200 Degree

Weave 3K Twill Weave/Plain Weave

Logo Customized Logo Acceptable

Product Introduction

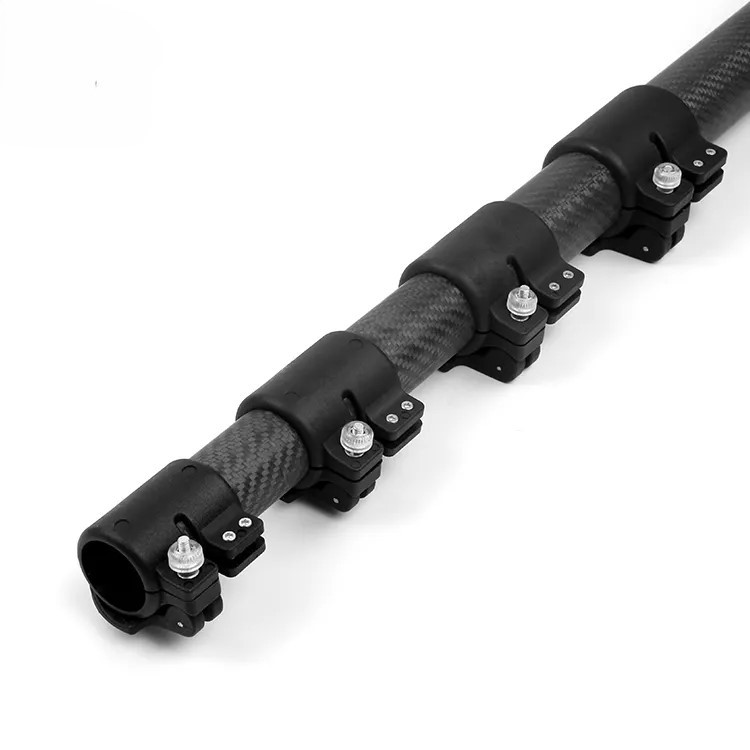

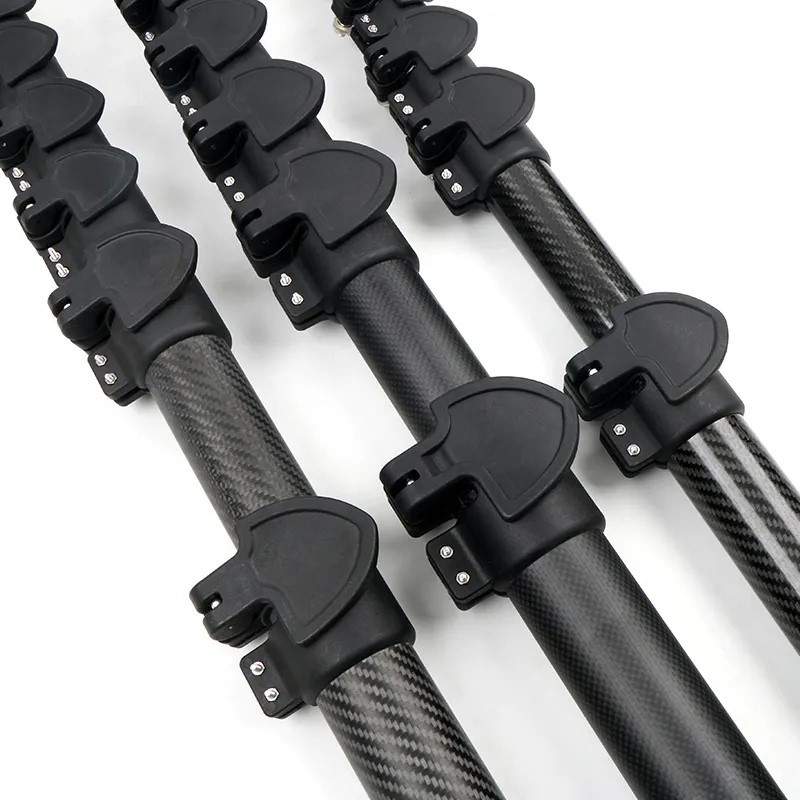

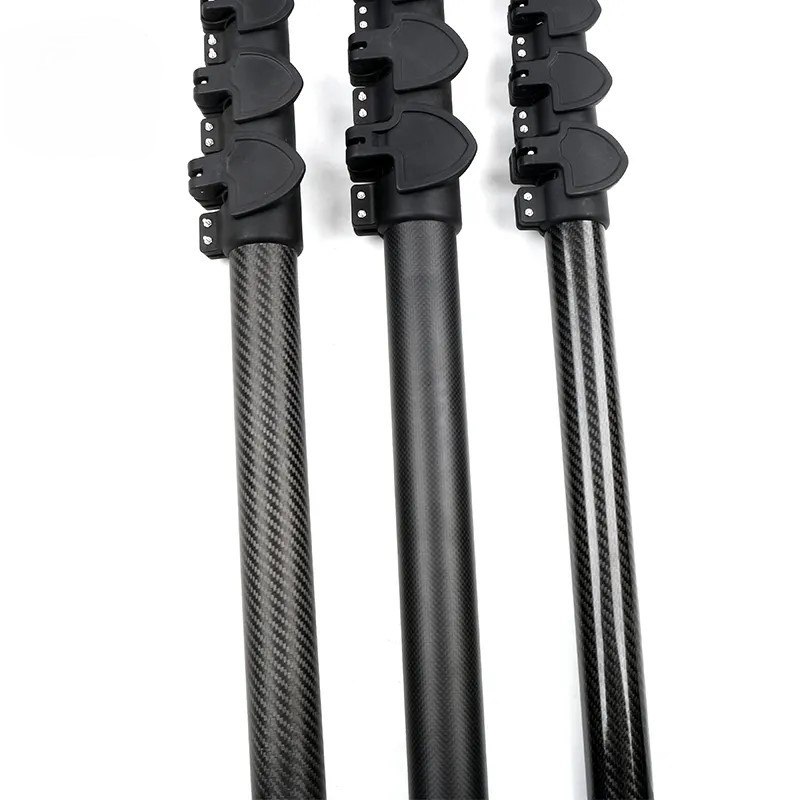

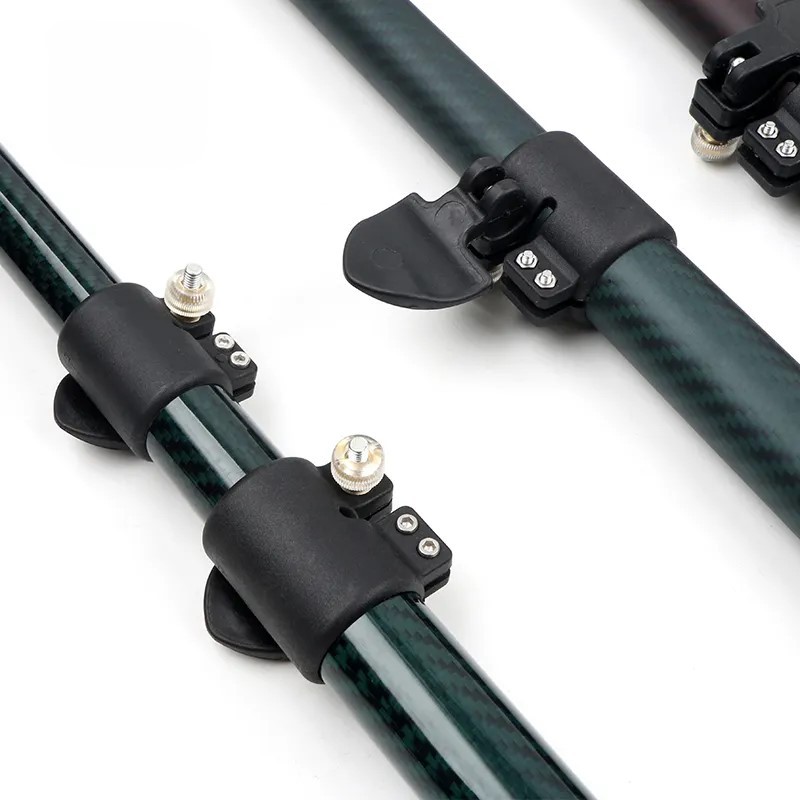

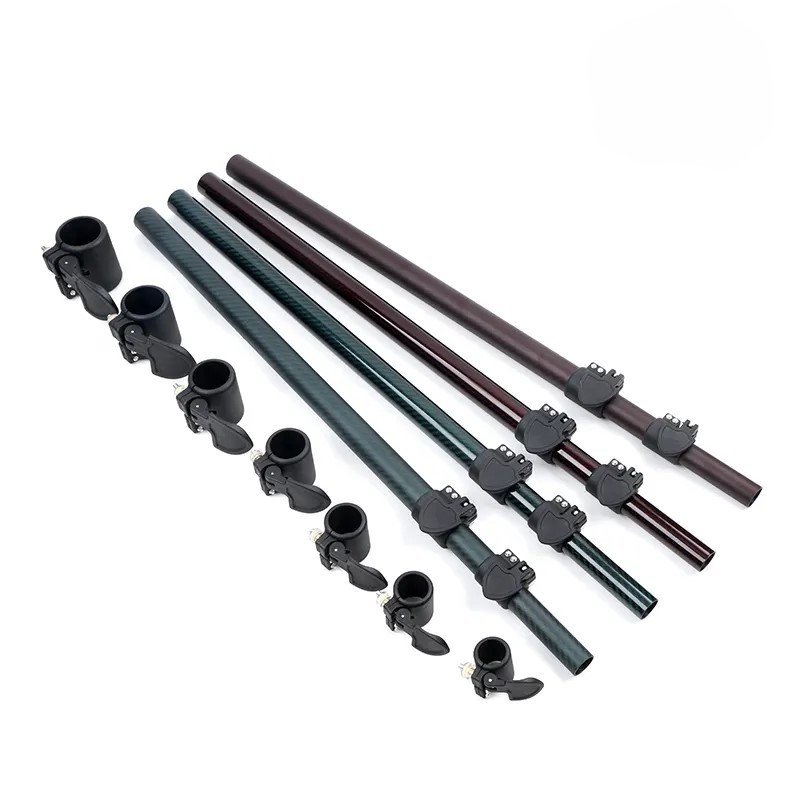

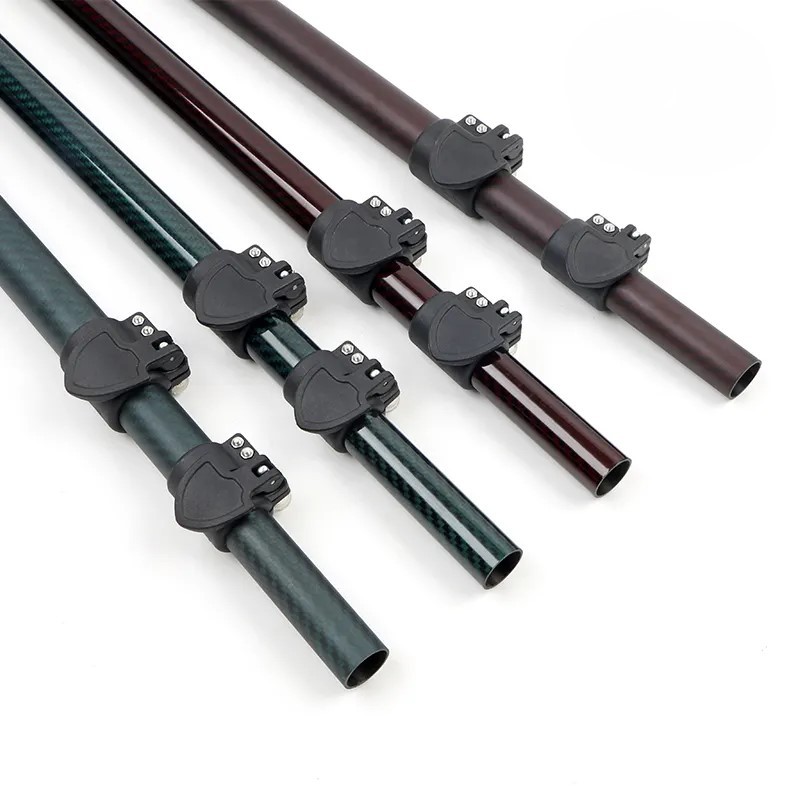

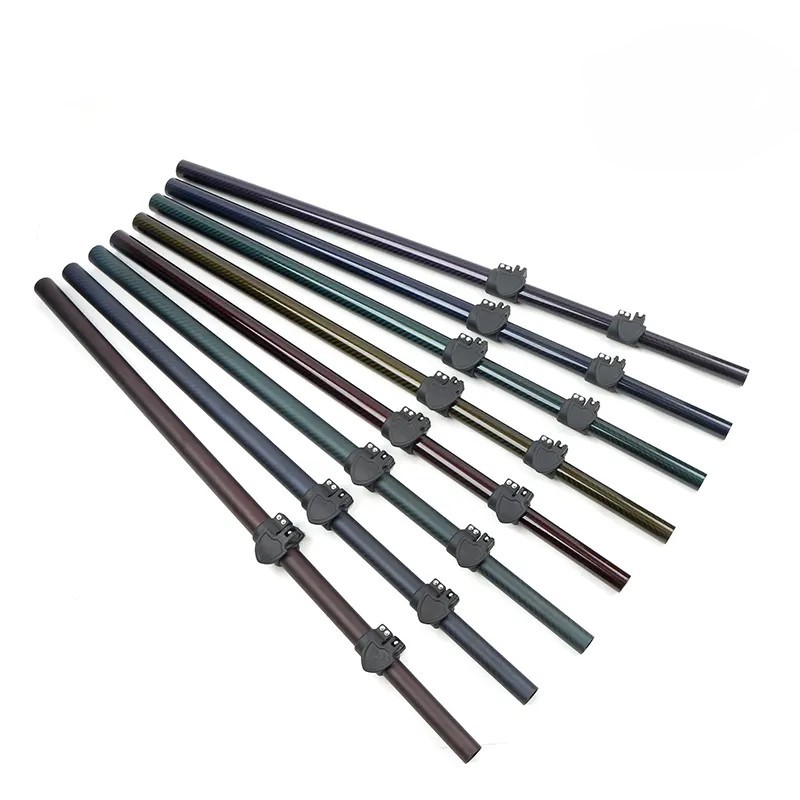

Carbon Fiber Telescopic Extension Pole

The carbon fiber telescopic extension pole is an outstanding device with numerous remarkable advantages. Firstly, it is crafted from premium carbon fiber, renowned for its extraordinary strength-to-weight ratio. This means it is incredibly strong, capable of withstanding heavy loads and stresses, while remaining remarkably lightweight. It is easy to handle and maneuver, reducing user fatigue during operation.

The telescopic feature offers great flexibility. It can be smoothly extended or retracted to different lengths, allowing for precise adjustments according to specific tasks. Whether it's reaching high or far places, it provides the perfect solution.

Furthermore, carbon fiber has excellent corrosion resistance, ensuring the pole's durability and long service life even in harsh environments. Its sleek and smooth surface finish not only gives it an aesthetically pleasing look but also provides a comfortable and secure grip.

In addition, the pole's construction is highly stable, minimizing vibrations and ensuring accurate and reliable performance. It is widely applicable in various fields such as photography, where it enables photographers to capture unique angles; in outdoor exploration for retrieving objects or accessing hard-to-reach areas; and in industrial maintenance and inspection work, facilitating access to elevated or confined spaces. Overall, this carbon fiber telescopic extension pole is a top-notch tool that combines strength, versatility, and durability.

Q1: What is the maximum length the carbon fiber telescopic pole can reach?
A: The maximum length varies depending on the specific model, typically ranging from 0.5 ~ 2.7 meters photography, 6 ~18 meters for saving, 1 ~ 5 meters for industrial use, 2~3 meters for sports equipment, 4 ~ 6 meters for fishing.

Q2: How much weight can the pole support?
A: Factors Affecting the Load-bearing Capacity of Carbon Fiber Telescopic Poles

- Grade and Quality of Carbon Fiber:
  - High-quality carbon fiber materials have higher fiber strength and modulus. For example, carbon fiber of grade T800 or above can bear a greater weight compared to grade T300 under the same structure. The tensile strength of grade T800 carbon fiber can reach above 5.49 GPa, while that of grade T300 carbon fiber is generally around 3.53 GPa.
- Diameter and Wall Thickness of the Telescopic Pole:
  - A telescopic pole with a larger diameter and thicker wall thickness usually can bear a heavier load. Generally, for carbon fiber telescopic poles with a diameter between 30mm and 50mm and a wall thickness between 2mm and 5mm, the load-bearing capacity increases with the increase of size. For example, a telescopic pole with a diameter of 30mm and a wall thickness of 2mm may have a load-bearing capacity of 5 - 10kg, while a pole with a diameter of 50mm and a wall thickness of 5mm may have a load-bearing capacity of 30 - 50kg.
- Structural Design of the Telescopic Pole:
  - A reasonable structural design, such as using a multi-layer nesting and reinforcing the connection parts, can improve the load-bearing capacity. For example, some telescopic poles use metal reinforcing sleeves at the connection parts, which makes the connection more stable and thus increases the overall load-bearing capacity.
Load-bearing Range in Different Application Scenarios
- Carbon Fiber Telescopic Poles for Photographic Equipment:
  - Such telescopic poles are mainly used to support photographic equipment like cameras, and the load-bearing capacity is generally around 2 - 5kg. Because the weight of a general DSLR camera with a lens is usually 1 - 3kg, and this load-bearing range can meet most photographic needs and ensure the stability of the camera during shooting.
- Carbon Fiber Telescopic Poles for Outdoor Exploration (such as Hiking Poles, Salvage Poles):
  - A single carbon fiber hiking pole in the form of a telescopic pole usually has a load-bearing capacity of around 10 - 15kg. This is because during the climbing process, the user may rely on the hiking pole to support part of their body weight to prevent slipping and other situations. And for telescopic poles used for outdoor salvage, the load-bearing capacity may be around 5 - 10kg, which is mainly used to salvage some lighter items, such as floating objects in the water.
- Carbon Fiber Telescopic Poles for Industrial Use (such as Support for Testing Equipment):
  - Carbon fiber telescopic poles used as supports for industrial testing equipment have a relatively high load-bearing capacity requirement, generally around 20 - 50kg. Because industrial testing equipment is often relatively heavy, such as some large flaw detectors, monitoring instruments, etc., and the telescopic poles need to be able to stably support the equipment for operation.

Q3: Is the carbon fiber material durable?
A: Yes, carbon fiber is highly durable. It has excellent resistance to corrosion and wear, ensuring a long service life even in harsh conditions.

Q4: Can the pole be used in wet environments?
A: The carbon fiber itself is resistant to water, but it's advisable to dry it after use in wet conditions to maintain the integrity of any metal fittings or connections.

Q5: How do I clean the carbon fiber telescopic pole?
A: Use a mild detergent and a soft cloth. Gently wipe the surface to remove dirt and debris. Avoid using abrasive cleaners that could damage the carbon fiber.

Q6: What is the advantage of the telescopic design?
A: The telescopic design allows for easy length adjustment, making it convenient to store and transport. It also enables the pole to be used for a variety of tasks with different reach requirements.

Tags: Carbon Fiber Telescopic Pole and tube

PREVIOUS：Sports car carbon fiber spare parts Automotive parts 100% carbon fiber NEXT：manufacturer customized 3k plain/twill matte/glossy carbon fiber triangle tube carbon rod

C Content (%)	100% carbon fiber
Place of Origin	Guangdong, China
Application	Hiking Poles, Salvage Poles,UAV ,Drones ,FPV ,Sports, Support for Testing Equipment etc.
Shape	Custom
Dimensions	Custom
Product Type	Carbon Fiber
Material	100% Carbon Fiber
Surface	3k Twill/plain Glossy/matte
Feature	Light Weight High Strength
Color	Customized Colors
Thickness	Customized Thickness
Working Temperature	0-200 Degree
Weave	3K Twill Weave/Plain Weave
Logo	Customized Logo Acceptable

Carbon Fiber Telescopic Tube/Pole
